CUSTOM ENGINEERING PROJECT / IV INFUSION SET
A PLC-controlled line designed to feed and assemble seven supplied inputs. The documented layout includes component feeding, transfer, gluing, testing and discharge stations.
TECHNICAL PROPOSAL SPECIFICATIONS
Documented line
parameters.
- Overall size
- 11,650 × 4,700 × 1,900 mm
- Voltage
- 3-phase, 380–440 V
- Air supply
- 0.4–0.8 MPa
- Gross weight
- 7,000 kg
INPUTS TO THE LINE
Seven supplied inputs

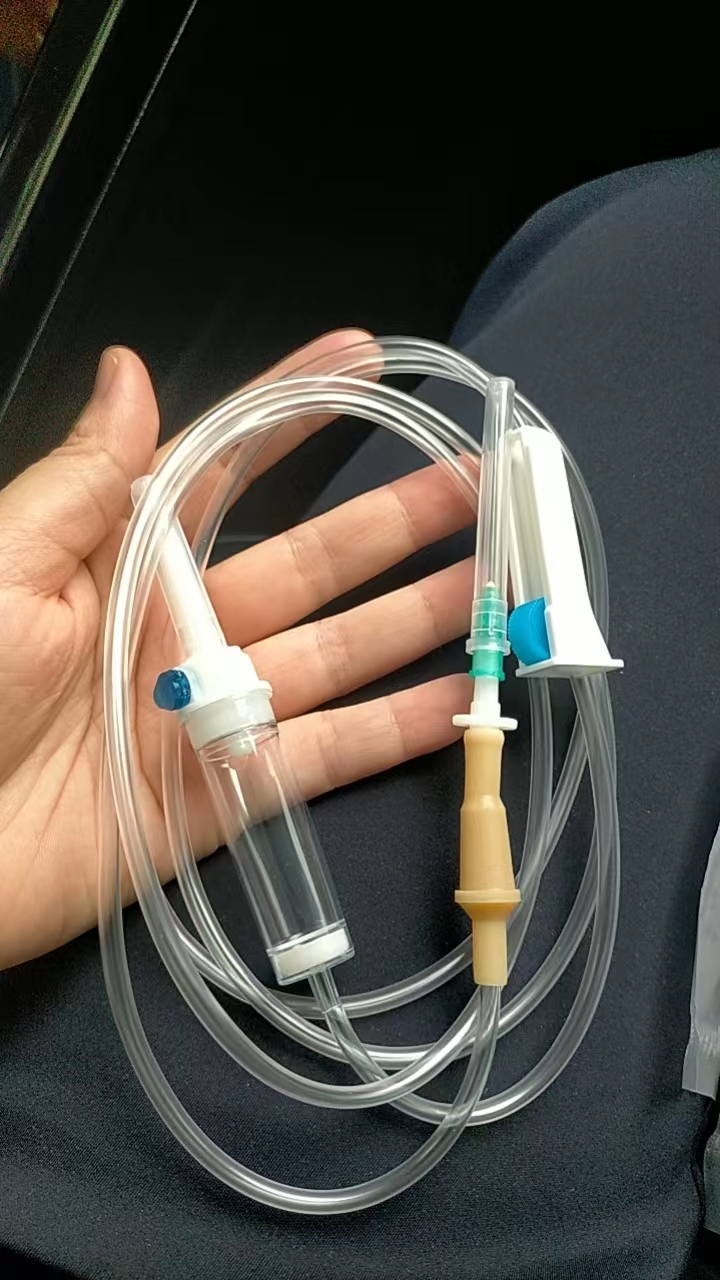

The proposal starts with pre-cut PVC tubing and supplied components or subassemblies.
Seven component groups are listed for this configuration.
- Pre-cut long PVC tube
- Regulator housing
- Roller
- Latex bulb
- Connector
- Needle set
- Drip chamber unit
The line receives the needle set and drip chamber unit as supplied subassemblies.
DOCUMENTED LINE FUNCTIONS

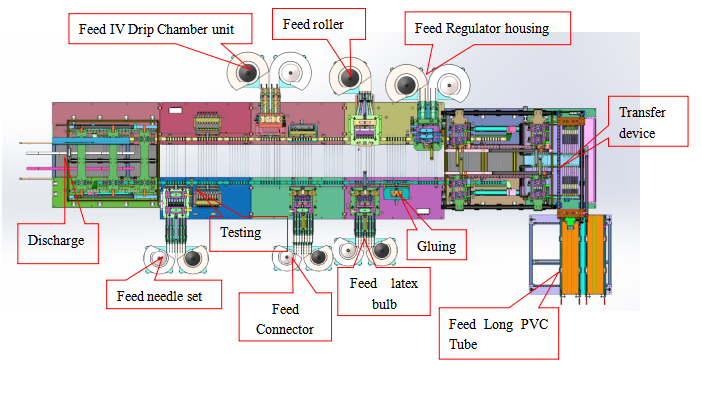

The station layout identifies the following functions. It shows the equipment arrangement, not a strict serialized process sequence.
Component feeding
Vibratory plate feeders present the tube, regulator housing and roller, latex bulb, connector, needle set and drip chamber unit.
Tube handling and transfer
Manipulator pickup, positioning and assembly devices handle the supplied parts, while a transfer device moves work through the line.
Regulator housing and roller assembly
The documented layout identifies the regulator housing and roller feeds alongside the assembly path, plus a gluing station for the set.
Testing and discharge
Testing and discharge stations are identified in the layout. Test methods and acceptance limits remain product-specific.
CONTROL ARCHITECTURE
Specified control
components.
The proposal specifies the following component brands for the line controls and motion system.
- Pneumatic components
- SMC (Japan)
- Servo motors
- Panasonic (Japan)
- PLC
- Keyence (Japan)
- Fiber sensors
- Panasonic (Japan)
- Light sensors
- SICK (Germany)
DOCUMENTED SCOPE
Start with
supplied inputs.
Your components and targets determine the equipment.
The supplied technical proposal begins with pre-cut PVC tubing and supplied components or subassemblies. It does not document tube extrusion, component molding, sterilization or final product packaging.
START A PROJECT
Tell us what you need
to manufacture.
Share your product, process and automation goal.
Request assessment
